Description

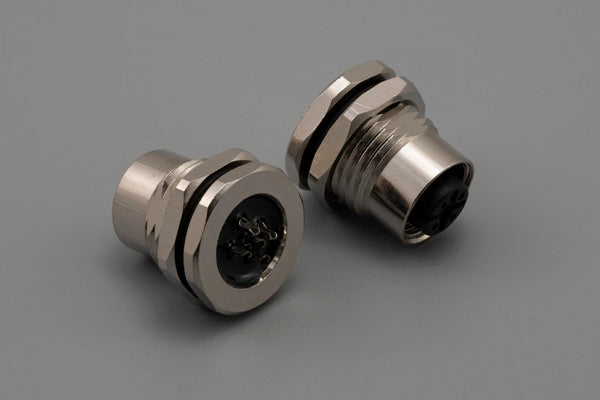

Connector, M12 A-code socket, 5 pin, 12xL21.5 mm, panel mount, solder cup, gold plated, IP67
| connector type | M series |
| connector style | plug |
| connector orientation | 90° |
| M type | M12 |
| # of connector contacts | 5 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 21.5 mm |
| mounting style | thru hole, board lock |
| connector color | black |
| operating temperature | -40~105 °C |
| voltage rating | 60 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| features | waterproof |
| HTS code | 8536.69.4020 |
| unit weight | 9.10g |
| Prop65 | Nickel |
