Description

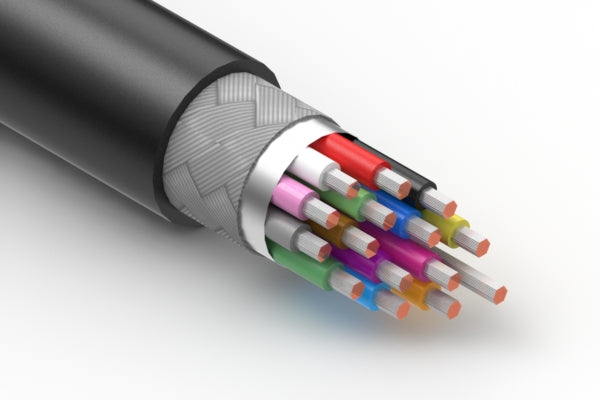

Wire, 14C, TS, 26 AWG, UL2464, cont flex, 300V, 80C, 6.7 mm, VW-1, PVC
| # of conductors | 14 |
| wire outer Ø | 6.7 |
| AWG | 26 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 40.2 mm |
| color | black |
| insulator color | red + black + white + yellow + blue + green + orange + purple + gray + brown + pink + magenta + light green + light blue |
| operating temperature | -20~80 °C |
| voltage rating | 300 V |
| cycle rating | 10000000 |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| Prop65 | Vinyl Chloride |
