Description

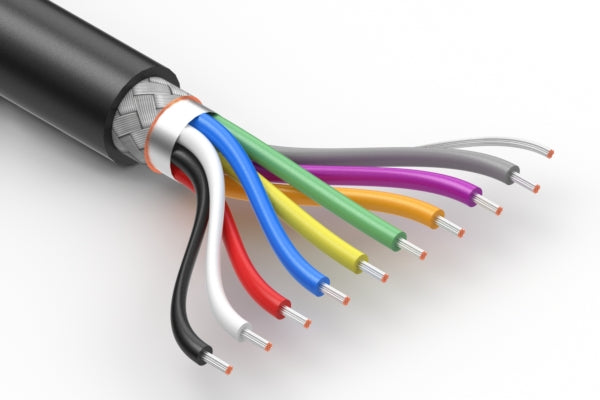

Wire, 9C TS, 22 AWG, UL20387, 300V, 105C, 60C oil, UV, 8.1 mm, shielded, VW-1, PVC, 80A, black
| # of conductors | 9 |
| wire outer Ø | 8.1 |
| AWG | 22 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 48.6 mm |
| color | black |
| insulator color | red + black + white + yellow + blue + green + orange + purple + gray |
| operating temperature | -40~105 °C |
| voltage rating | 300 V |
| UL style | 20387 |
| HTS code | 8544.49.3080 |
| Prop65 | Vinyl Chloride |
