Description

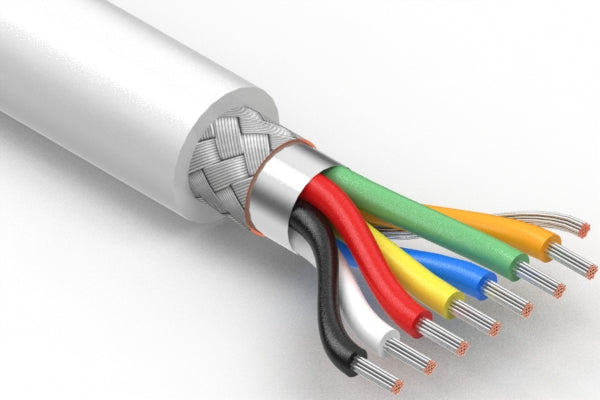

Wire, 7C TS, 18 AWG, UL2464, 300V, 80C, 7.8 mm, shielded, VW-1, PVC, white
| # of conductors | 7 |
| wire outer Ø | 7.8 |
| AWG | 18 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 46.8 mm |
| color | white |
| insulator color | red + black + white + yellow + blue + green + orange |
| operating temperature | -25~80 °C |
| voltage rating | 300 V |
| UL style | 2464 |
| HTS code | 8544.49.3080 |
| Prop65 | Vinyl Chloride |
