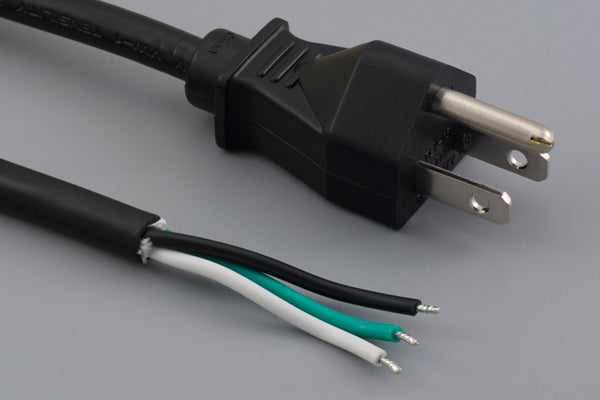

Ac cord, 1000 mm, U.S, NEMA 5-15P plug, TLY-13 to tinned, 18 AWG, SJT wire, 30-00248
| connector type | NEMA 5-15P |
| connector style | plug → tinned |
| connector orientation | 180° |
| # of conductors | 3 |
| # of connector contacts | 3 |
| wire outer Ø | 7.75 mm |
| AWG | 18 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 46.5 mm |
| color | black |
| insulator color | black + white + green |
| cable length | 1000 mm |
| operating temperature | 105 °C |
| voltage rating | 125 V |
| current rating | 10.0 A |
| features | SJT |
| connector 1 | NEMA 5-15P |
| connector 2 | stripped and tinned |
| wire part # | 30-00248 |
| HTS code | 8544.42.9090 |
| unit weight | 118.70g |
| Prop65 | Vinyl Chloride |
