Description

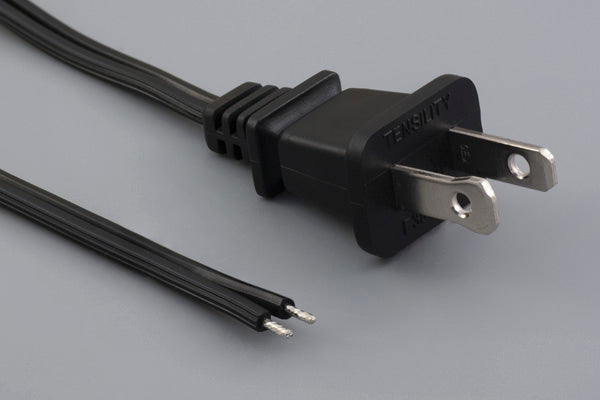

Ac cord, 1000 mm, U.S, NEMA 1-15P plug, TLY-1P to tinned, 18 AWG, SPT-1 wire, 30-00242
| connector type | NEMA 1-15P |
| connector style | plug → tinned |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| wire outer Ø | 5.55 |
| AWG | 18 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 33.3 mm |
| color | black |
| cable length | 1000 mm |
| operating temperature | 105 °C |
| voltage rating | 125 V |
| current rating | 10.0 A |
| features | SPT-1 |
| connector 1 | NEMA 1-15P |
| connector 2 | stripped and tinned |
| wire part # | 30-00242 |
| HTS code | 8544.42.9090 |
| unit weight | 47.28g |
| Prop65 | Vinyl Chloride |
