Description

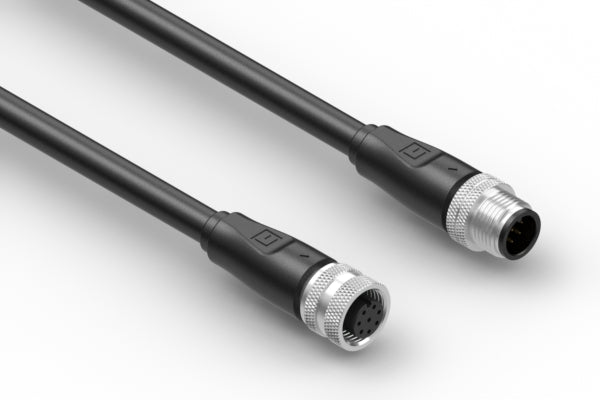

Cable, 3000 mm, 0.8 mm 8C 50-00983 M12 socket to 0.8 mm 50-00990 M12 plug, 24 AWG, 30-03039 wire
| connector type | M series |
| connector style | socket to plug |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 8 |
| # of connector contacts | 8 |
| connector center pin Ø | 0.8 mm |
| connector plating | gold |
| connector length | 22.0 mm |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | mm |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| jacket material | TPU |
| color | black |
| insulator color | red + black + white + yellow + blue + green + orange + purple |
| cable length | 3000 mm |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 2.0 A |
| UL style | 21765 |
| connector 1 | 50-00983 |
| connector 2 | 50-00990 |
| wire part # | 30-03039 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
