Description

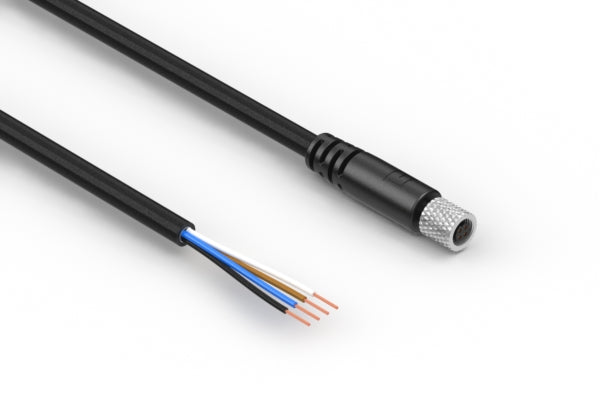

Cable, 1830 mm, 0.5 mm 4C 50-00605 M5 socket to 5 mm tinned, 26 AWG, 30-03429 wire, IP67
| connector type | M series |
| connector style | jack → tinned |
| connector orientation | 180° |
| M type | M5 |
| # of conductors | 4 |
| # of connector contacts | 4 |
| connector center pin Ø | 0.5 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 7.6 mm |
| locking style | thread lock |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 3.3 |
| AWG | 26 |
| cable style | round |
| shield | unshielded |
| jacket material | TPU |
| bend radius | 19.8 mm |
| color | black |
| insulator color | black + white + blue + brown |
| cable length | 1830 mm |
| operating temperature | -40~70 °C |
| voltage rating | 60 V |
| current rating | 1.0 A |
| cycle rating | 500 |
| connector 1 | 50-00605 |
| connector 2 | stripped and tinned |
| wire part # | 30-03429 |
| HTS code | 8544.42.9090 |
| unit weight | 43.35g |
| Prop65 | Nickel |
