Description

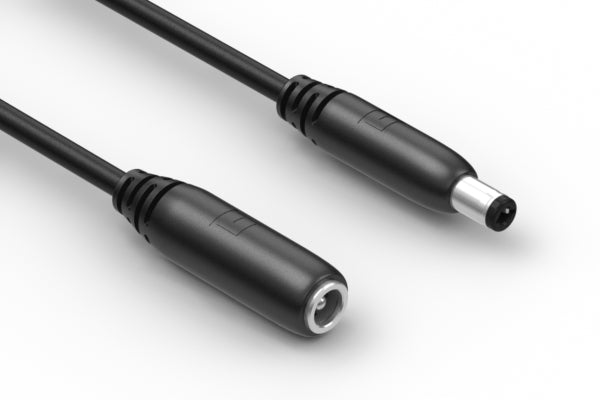

Cable, 915 mm, 5.5x2.5 mm 50-00026 dc plug to 5.5x2.5 mm 50-00027 dc jack, 24 AWG, 30-00692 wire
| connector type | dc |
| connector style | plug → jack |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector plating | nickel |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 4 |
| AWG | 24 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 24 mm |
| color | black |
| insulator color | black + red |
| cable length | 915 mm |
| voltage rating | 48 V |
| current rating | 4.5 A |
| UL style | 2464 |
| connector 1 | 50-00026 |
| connector 2 | 50-00027 |
| wire part # | 30-00692 |
| HTS code | 8544.42.9090 |
| unit weight | 32.92g |
| Prop65 | Vinyl Chloride |
