Description

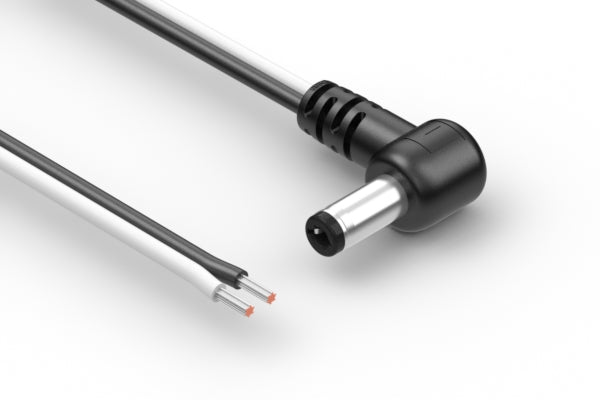

Cable, 3050 mm, 5.5x2.5x12 mm 90° 50-00705 dc plug to 5 mm tinned, 16 AWG, UL21516, 30-03173 wire
| connector type | dc |
| connector style | plug → tinned |
| connector orientation | 90° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| wire outer Ø | 4.8 |
| AWG | 16 |
| cable style | flat |
| shield | unshielded |
| jacket material | mPPE |
| bend radius | 14.4 mm |
| color | white + black |
| cable length | 3050 mm |
| operating temperature | -25~105 °C |
| voltage rating | 48 V |
| current rating | 6.5 A |
| UL style | 21516 |
| connector 1 | 50-00705 |
| connector 2 | stripped and tinned |
| wire part # | 30-03174 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
