Description

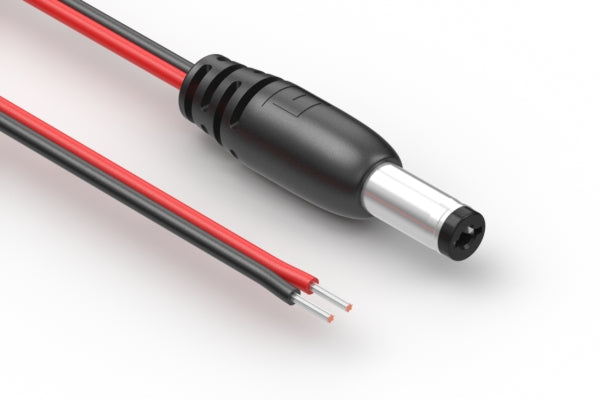

Cable, 1830 mm, 5.5x2.1x12 mm 50-00704 dc plug to 5 mm tinned, 20 AWG, UL21516, 30-03165 wire, R-B
| connector style | plug → tinned |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.1 mm |
| wire outer Ø | 3.6 |
| AWG | 20 |
| cable style | flat |
| shield | unshielded |
| jacket material | mPPE |
| bend radius | 10.8 mm |
| color | red + black |
| cable length | 1830 mm |
| operating temperature | -25~105 °C |
| voltage rating | 48 V |
| current rating | 9.5 A |
| UL style | 21516 |
| connector 1 | 50-00704 |
| connector 2 | stripped and tinned |
| wire part # | 30-03164 |
| HTS code | 8544.42.9090 |
| unit weight | 31.20g |
| Prop65 | Nickel |
