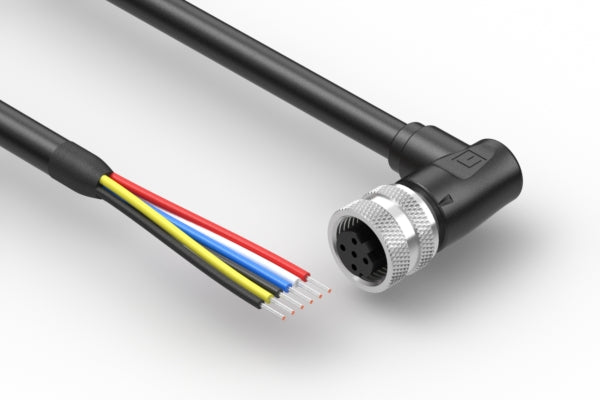

Cable, 10000 mm, 1.0 mm 5C 90° 50-01032 M12 socket D-code to 5mm tinned, 22 AWG, 30-01586, shielded
| connector type | M series |
| connector style | jack → tinned |
| connector orientation | 90° |
| M type | M12 |
| # of conductors | 5 |
| # of connector contacts | 5 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | D |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 6.5 mm |
| AWG | 22 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 39 mm |
| color | black |
| insulator color | red + black + white + yellow + blue |
| cable length | 10000 mm |
| operating temperature | -40~105 °C |
| voltage rating | 60 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| UL style | 20387 |
| features | thread lock |
| connector 1 | 50-01032 |
| connector 2 | stripped and tinned |
| wire part # | 30-01586 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
