Description

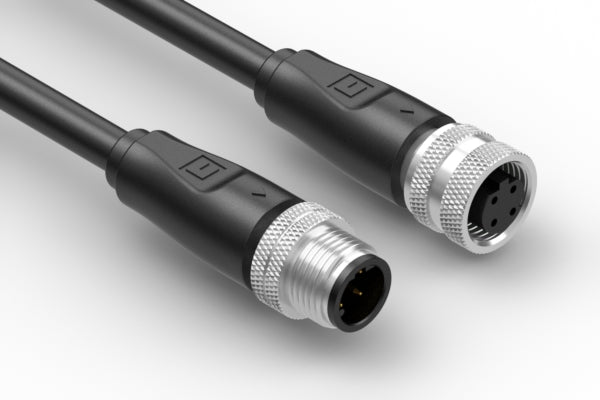

Cable, 3000 mm, 1.0 mm 4C 50-01028 M12 socket D-code to 50-01029 M12 plug D-code, 22 AWG, 30-01578
| connector type | M series |
| connector style | plug → jack |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 4 |
| # of connector contacts | 4 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | D |
| locking style | thread lock |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 6 |
| AWG | 22 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 36 mm |
| color | black |
| insulator color | red + black + white + yellow |
| cable length | 3000 mm |
| operating temperature | -40~105 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| UL style | 20387 |
| connector 1 | 50-01028 |
| connector 2 | 50-01029 |
| wire part # | 30-01578 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
