Price:
Sale price$0.00

Description

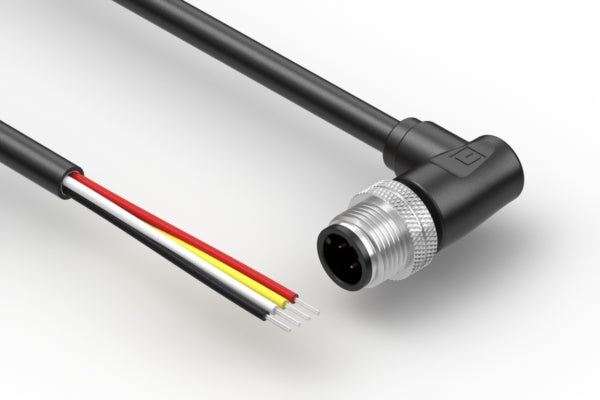

Cable, 500 mm, 1.0 mm 4C 90° 50-01027 M12 plug D-code to 5mm tinned, 22 AWG, 30-01658 wire

connector type M series
connector style plug → tinned
connector orientation 90°
M type M12
# of conductors 4
# of connector contacts 4
connector center pin Ø 1.0 mm
connector plating gold
connector coding D
locking style thread lock
mounting style cable mount
connector color black
wire outer Ø 5.6
AWG 22
cable style round
shield unshielded
jacket material PVC
bend radius 33.6 mm
color black
insulator color red + black + white + yellow
cable length 500 mm
operating temperature -40~105 °C
voltage rating 250 V
current rating 4.0 A
cycle rating 500
UL style 20387
connector 1 50-01027
connector 2 stripped and tinned
wire part # 30-01658
HTS code 8544.42.9090
Prop65 Vinyl Chloride
