Price:
Sale price$0.00

Description

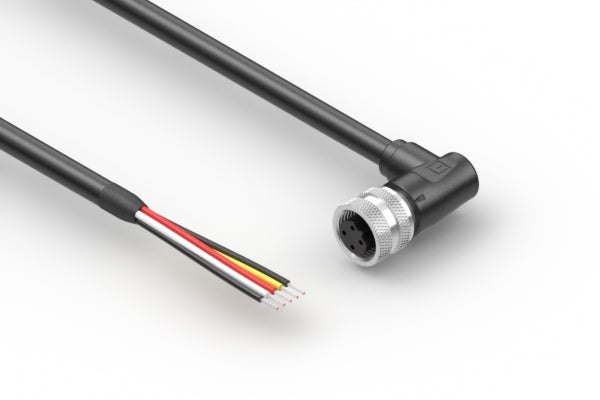

Cable, 5000 mm, 1.0 mm 4C 90° 50-01016 M12 socket B-code to 5mm tinned, 22 AWG, 30-01578 wire, shielded

connector type M series
connector style jack → tinned
connector orientation 90°
M type M12
# of conductors 4
# of connector contacts 4
connector center pin Ø 1.0 mm
connector plating gold
connector coding B
locking style thread lock
mounting style cable mount
connector color black
wire outer Ø 6
AWG 22
cable style round
shield braid + foil
jacket material PVC
bend radius 36 mm
color black
insulator color red + black + white + yellow
cable length 5000 mm
operating temperature -40~105 °C
voltage rating 250 V
current rating 4.0 A
cycle rating 500
UL style 20387
connector 1 50-01016
connector 2 stripped and tinned
wire part # 30-01578
HTS code 8544.42.9090
Prop65 Vinyl Chloride
