Price:
Sale price$0.00

Description

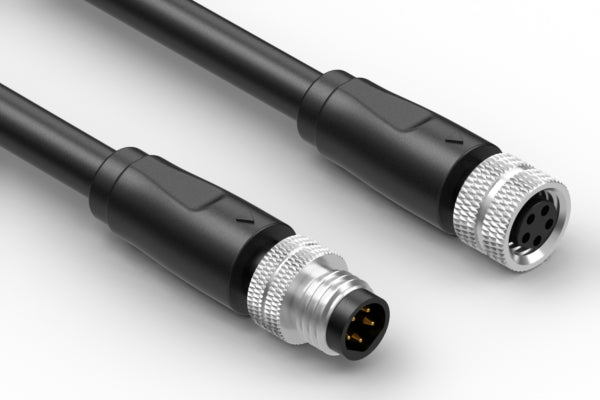

Cable, 3000 mm, 1.0 mm 5C 50-01004 M8 socket to 1.0 mm 50-01003 M8 plug, 24 AWG, 30-02980 wire

connector style plug → jack
connector orientation 180°
# of conductors 5
# of connector contacts 5
connector center pin Ø 1.0 mm
connector plating gold
connector coding B
locking style thread lock
mounting style cable mount
connector color black
wire outer Ø 5.6
AWG 24
cable style round
shield unshielded
jacket material PVC
bend radius 33.6 mm
color black
insulator color brown + white + blue + black + gray
cable length 3000 mm
operating temperature -40~105 °C
voltage rating 30 V
current rating 3.0 A
cycle rating 1000
UL style 20387
connector 1 50-01004
connector 2 50-01003
wire part # 30-02980
HTS code 8544.42.9090
unit weight 163.20g
Prop65 Vinyl Chloride
