Price:
Sale price$0.00

Description

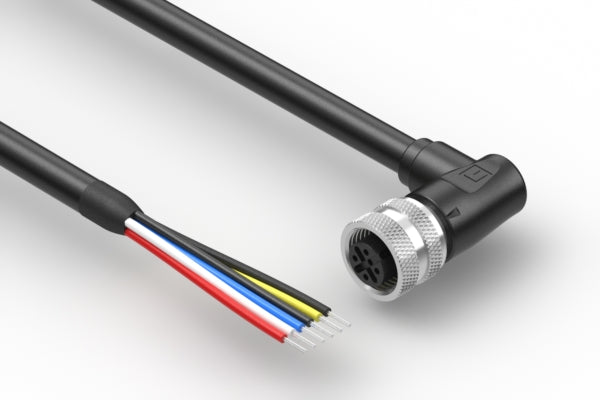

Cable, 5000 mm, 1.0 mm 5C 90° 50-00981 M12 socket to 5 mm tinned, 22 AWG, 30-01586 wire, shielded

connector type M series
connector style jack → tinned
connector orientation 90°
M type M12
# of conductors 5
# of connector contacts 5
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 22.0 mm
locking style thread lock
mounting style cable mount
connector color black
wire outer Ø 6.5
AWG 22
cable style round
shield braid + foil
jacket material PVC
bend radius 39 mm
color black
insulator color white + black + red + yellow + blue
cable length 5000 mm
operating temperature -40~105 °C
voltage rating 60 V
current rating 4.0 A
cycle rating 500
UL style 20387
connector 1 50-00981
wire part # 30-01586
HTS code 8544.42.9090
unit weight 373.00g
Prop65 Vinyl Chloride
