Description

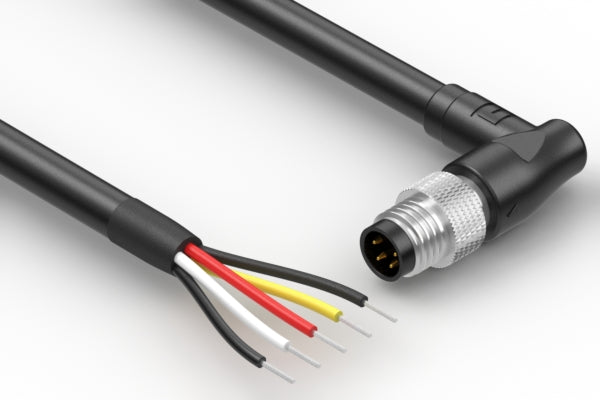

Cable, 500 mm, 1.0 mm 4C 90° 50-00680 M8 plug to 5mm tinned, 24 AWG, 30-01579 wire, shielded
| connector type | M series |
| connector style | plug → tinned |
| connector orientation | 90° |
| M type | M8 |
| # of conductors | 4 |
| # of connector contacts | 4 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 19.2 mm |
| locking style | thread lock |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 5.5 |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 33 mm |
| color | black |
| insulator color | white + black + red + yellow |
| cable length | 500 mm |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 3.0 A |
| cycle rating | 1000 |
| UL style | 20387 |
| connector 1 | 50-00680 |
| connector 2 | stripped and tinned |
| wire part # | 30-01579 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
