Description

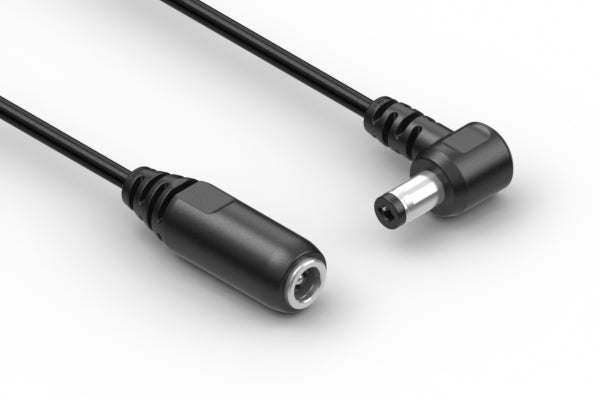

Cable, 1830 mm, 5.5x2.5x9.5 mm 90° 50-00129 dc plug to 5.5x2.5 mm 50-00027 dc jack, 20 AWG, 30-00338
| connector style | plug → jack |
| connector orientation | 90° |
| # of conductors | 1 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector plating | nickel |
| connector length | 9.5 mm |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 2.95 |
| AWG | 20 |
| cable style | round |
| shield | spiral |
| jacket material | PVC |
| bend radius | 17.7 mm |
| color | black |
| insulator color | white |
| cable length | 1830 mm |
| operating temperature | -25~70 °C |
| voltage rating | 48 V |
| current rating | 7.0 A |
| cycle rating | 5000 |
| UL style | 1185 |
| connector 1 | 50-00129 |
| connector 2 | 50-00027 |
| wire part # | 30-00338 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
