Price:
Sale price$0.00

Description

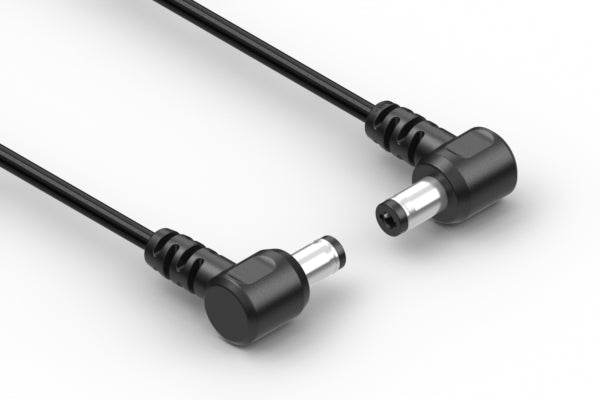

Cable, 1830 mm, 5.5x2.5x9.5 mm 90° 50-00129 dc plug to same, 20 AWG, 30-00338 wire

connector style plug → plug
connector orientation 90°
# of conductors 1
# of connector contacts 2
connector center pin Ø 2.5 mm
connector outer Ø 5.5 mm
connector plating nickel
connector length 9.5 mm
mounting style cable mount
connector color black
wire outer Ø 2.95
AWG 20
cable style round
shield spiral
jacket material PVC
bend radius 17.7 mm
color black
insulator color white
cable length 1830 mm
operating temperature -25~70 °C
voltage rating 48 V
current rating 7.0 A
cycle rating 5000
UL style 1185
connector 1 50-00129
connector 2 50-00129
wire part # 30-00338
HTS code 8544.42.9090
unit weight 40.53g
Prop65 Nickel
