Price:
Sale price$0.00

Description

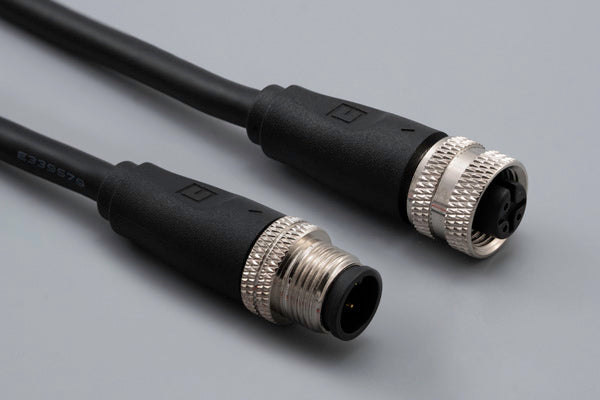

Cable, 3000 mm, 1.0 mm 3C 50-00979 M12 socket to 1.0 mm 50-00986 M12 plug, 22 AWG, 30-01570 wire

connector type M series
connector style plug → jack
connector orientation 180°
M type M12
# of conductors 3
# of connector contacts 3
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 22 mm
mounting style cable mount
connector color black
wire outer Ø 5.6
AWG 22
cable style round
shield braid + foil
jacket material PVC
bend radius 33.6 mm
color black
insulator color red + black + white
cable length 3000 mm
operating temperature -40~105 °C
voltage rating 250 V
current rating 4.0 A
cycle rating 500
UL style 20387
connector 1 50-00979
connector 2 50-00986
wire part # 30-01570
HTS code 8544.42.9090
unit weight 196.00g
Prop65 Vinyl Chloride
