Description

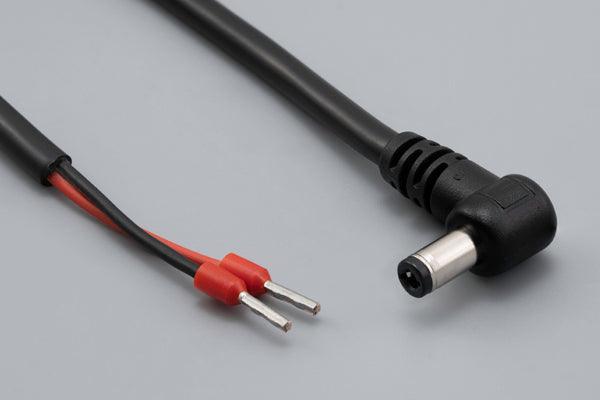

Cable, 1830 mm, 5.5x2.5x10 mm 90° 50-00129 dc plug to ferrules, 18 AWG, 30-00683 wire
| connector type | dc |
| connector style | plug → ferrules |
| connector orientation | 90° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector plating | nickel |
| connector length | 10.0 mm |
| connector color | black |
| wire outer Ø | 5.2 |
| AWG | 18 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 31.2 mm |
| color | black |
| insulator color | red + black |
| cable length | 1830 mm |
| voltage rating | 48 V |
| current rating | 7.0 A |
| UL style | 2464 |
| connector 1 | 50-00129 |
| connector 2 | ferrule |
| wire part # | 30-00683 |
| HTS code | 8544.42.9090 |
| unit weight | 88.89g |
| Prop65 | Vinyl Chloride |
