Description

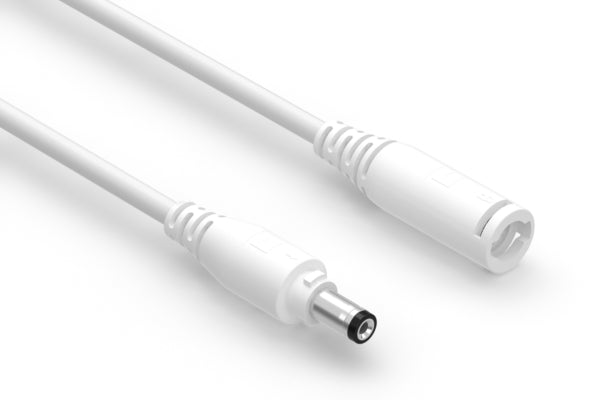

Cable, 3050 mm, 5.5x2.5mm 50-00595 dc plug twist lock to 5.5x2.5mm 50-00153 dc jack, 22 AWG, white
| connector type | dc |
| connector style | plug → jack |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| connector plating | nickel |
| locking style | twist lock |
| connector color | black |
| wire outer Ø | 4.3 |
| AWG | 22 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 25.8 mm |
| color | white |
| insulator color | black + red |
| cable length | 3050 mm |
| UL style | 2464 |
| connector 1 | 50-00595 |
| connector 2 | 50-00153 |
| wire part # | 30-00690 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
