Description

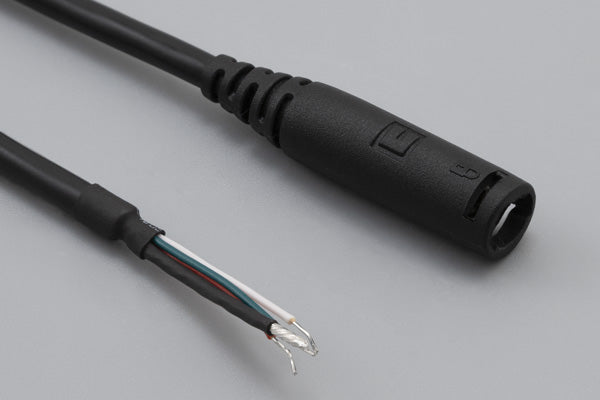

Cable, 915 mm, 3.5 mm 4C 50-00903 twist lock audio jack to 5 mm tinned, 28 AWG, 30-00179
| connector type | audio-video |
| connector style | jack → tinned |
| connector orientation | 180° |
| # of conductors | 3 |
| # of connector contacts | 4 |
| connector outer Ø | 3.5 mm |
| connector plating | nickel |
| connector length | 19.5 mm |
| locking style | twist lock |
| connector color | black |
| wire outer Ø | 3.8 |
| AWG | 28 |
| cable style | round |
| shield | spiral + foil |
| jacket material | PVC |
| bend radius | 22.8 mm |
| color | black |
| insulator color | red + white + green |
| cable length | 915 mm |
| operating temperature | -25~70 °C |
| connector 1 | 50-00903 |
| connector 2 | stripped and tinned |
| wire part # | 30-00179 |
| HTS code | 8544.42.9090 |
| unit weight | 27.92g |
| Prop65 | Nickel |
