Description

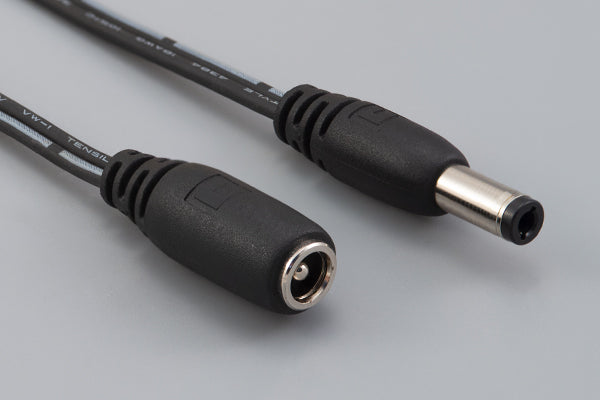

Cable, 1830 mm, 5.5x2.5x12 mm 50-00542 dc plug to 5.5x2.5 50-00543 jack, 18 AWG, 30-01248, LSZH
| connector type | dc |
| connector style | plug → jack |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector outer Ø | 5.5 mm |
| wire outer Ø | 4.4 |
| AWG | 18 |
| cable style | flat |
| jacket material | XLPE |
| bend radius | 13.2 mm |
| color | black |
| cable length | 1830 mm |
| operating temperature | 105 °C |
| UL style | 4384 |
| connector 1 | 50-00542 |
| connector 2 | 50-00543 |
| wire part # | 30-01248 |
| HTS code | 8544.42.9090 |
| unit weight | 52.70g |
| Prop65 | Nickel |
