Description

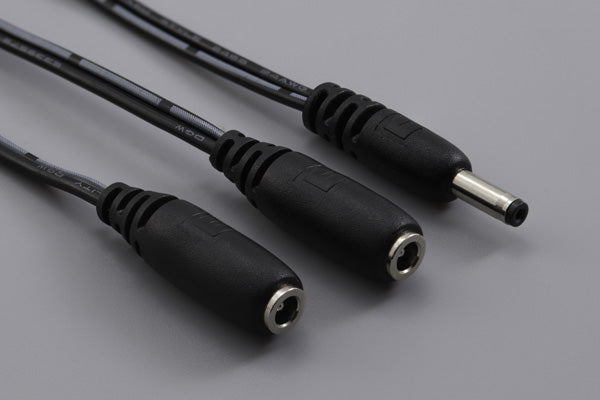

Cable, 915 mm, 3.5x1.35x9.5 mm 50-00056 dc plug to y-split to 2x 3.5x1.35mm 50-00057 dc jack, 24 AWG
| connector type | dc |
| connector style | plug → jack |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 1.35 mm |
| connector outer Ø | 3.5 mm |
| wire outer Ø | 3.6 |
| AWG | 24 |
| cable style | flat |
| jacket material | PVC |
| bend radius | 10.8 mm |
| color | black |
| cable length | 915 mm |
| operating temperature | 80 °C |
| UL style | 2468 |
| connector 1 | 50-00056 |
| connector 2 | 50-00057 |
| wire part # | 30-00003 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
