Price:
Sale price$0.00

Description

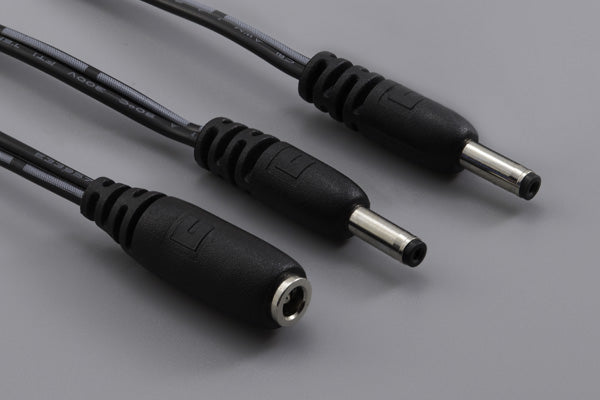

Cable, 915 mm, 3.5x1.35 mm 50-00057 dc jack to y-split to 2x 3.5x1.35x9.5mm 50-00056 dc plug, 24 AWG

connector type dc
connector style plug → jack
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 1.35 mm
connector outer Ø 3.5 mm
wire outer Ø 3.6
AWG 24
cable style flat
jacket material PVC
bend radius 10.8 mm
color black
cable length 915 mm
operating temperature 80 °C
UL style 2468
connector 1 50-00057
connector 2 50-00056
wire part # 30-00003
HTS code 8544.42.9090
Prop65 Vinyl Chloride
