Price:
Sale price$0.00

Description

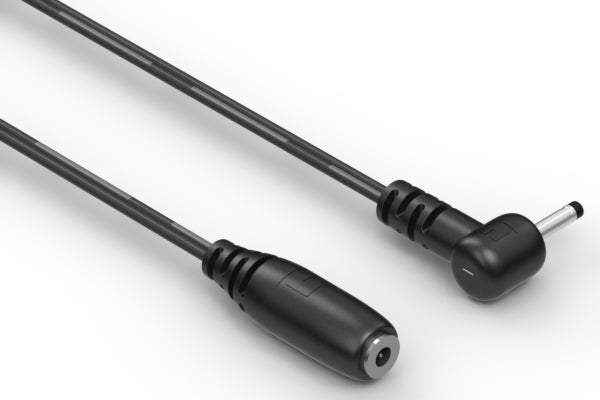

Cable, 1830 mm, 2.35x0.7x10 mm 90° 50-00030 dc plug to 2.35x0.7 mm 50-00031 dc jack, 24 AWG, UL2468

connector type dc
connector style plug → jack
connector orientation 90°
# of conductors 2
# of connector contacts 2
connector center pin Ø 0.7 mm
connector plating nickel
wire outer Ø 3
AWG 24
cable style flat
shield unshielded
jacket material PVC
bend radius 9 mm
color black
cable length 1830 mm
voltage rating 48 V
UL style 2468
connector 1 50-00030
connector 2 50-00031
wire part # 30-00404
HTS code 8544.42.9090
Prop65 Vinyl Chloride
