Description

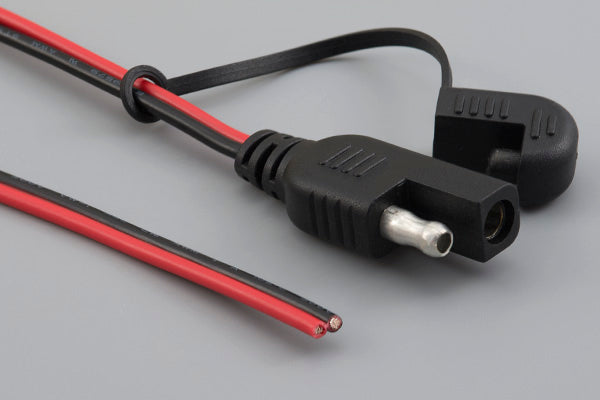

Cable, 1830 mm, 50-00550 SAE to blunt cut, 16 AWG, UL2651, 30-00792, R-B wire, black to SAE pin
| connector type | dc |
| connector style | plug → blunt cut |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector plating | nickel |
| wire outer Ø | 4.8 |
| AWG | 16 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 14.4 mm |
| color | red + black |
| cable length | 1830 mm |
| operating temperature | 105 °C |
| voltage rating | 48 V |
| current rating | 16.0 A |
| UL style | 2651 |
| connector 1 | 50-00550 |
| connector 2 | blunt cut |
| wire part # | 30-00792 |
| HTS code | 8544.42.9090 |
| unit weight | 69.00g |
| Prop65 | Vinyl Chloride |
