Description

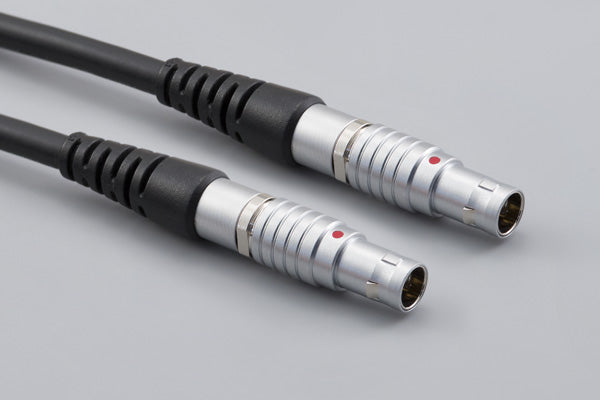

Cable, 1830 mm, 5C PPL7 plug 51-00019.M to same, 24 AWG, UL20280 30-00918
| connector type | push-pull |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 4 |
| # of connector contacts | 5 |
| connector center pin Ø | 0.7 mm |
| connector outer Ø | 7.0 mm |
| connector plating | gold |
| wire outer Ø | 4.5 |
| AWG | 24 |
| cable style | round |
| shield | braid |
| jacket material | TPU |
| bend radius | 27 mm |
| color | black |
| insulator color | red + black + white + yellow |
| cable length | 1830 mm |
| UL style | 20280 |
| connector 1 | 51-00019.M |
| connector 2 | 51-00019.M |
| wire part # | 30-00918 |
| HTS code | 8544.42.9090 |
| unit weight | 76.30g |
| Prop65 | Nickel |
