Description

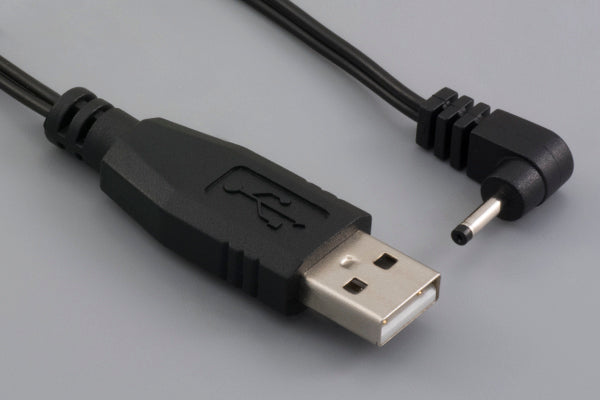

Cable, 1830 mm, USB A plug to 2.35x0.7x9.5mm 90° 50-00030 plug, center pos, 22 AWG, UL2468, 30-00008
| connector type | dc → usb |
| connector style | plug → plug |
| connector orientation | 90° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 0.7 mm |
| connector outer Ø | 2.35 mm |
| wire outer Ø | 3.6 |
| AWG | 22 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 10.8 mm |
| color | black |
| cable length | 1830 mm |
| voltage rating | 30 V |
| current rating | 3.0 A |
| UL style | 2468 |
| connector 1 | 50-00425 |
| connector 2 | 50-00030 |
| wire part # | 30-00008 |
| HTS code | 8544.42.9090 |
| unit weight | 35.53g |
| Prop65 | Vinyl Chloride |
