Description

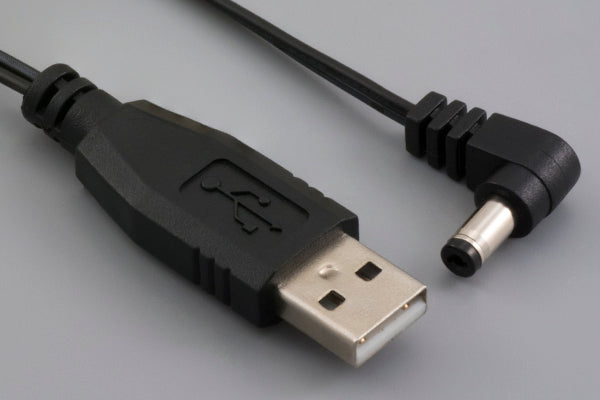

Cable, 1830 mm, USB A plug to 4.75x1.7x9.5mm 90° 50-00028 plug, center pos, 22 AWG, UL2468, 30-00008
| connector type | dc → usb |
| connector style | plug → plug |
| connector orientation | 90° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 1.7 mm |
| connector outer Ø | 4.75 mm |
| wire outer Ø | 3.6 |
| AWG | 22 |
| cable style | flat |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 10.8 mm |
| color | black |
| cable length | 1830 mm |
| voltage rating | 5 V |
| current rating | 1.0 A |
| UL style | 2468 |
| connector 1 | 50-00425 |
| connector 2 | 50-00028 |
| wire part # | 30-00008 |
| HTS code | 8544.42.9090 |
| unit weight | 36.20g |
| Prop65 | Vinyl Chloride |
