Description

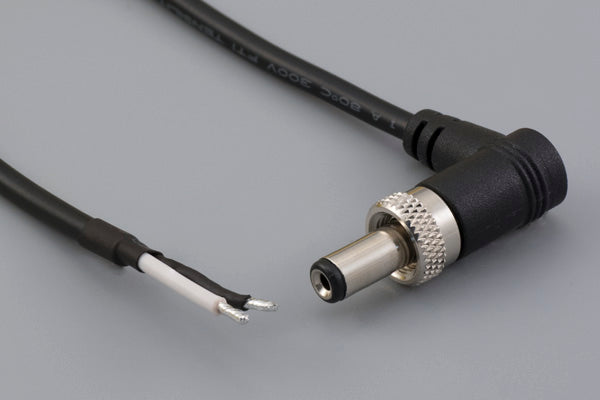

Cable, 2000 mm, 5.5x2.1x7.5mm 90° 50-00010 locking dc plug to 5mm tinned, 18 AWG, UL1185, 30-00004

connector type dc
connector style plug → tinned
connector orientation 90°
# of conductors 1
# of connector contacts 2
connector center pin Ø 2.1 mm
connector outer Ø 5.5 mm
locking style thread lock
wire outer Ø 3.4
AWG 18
cable style round
shield spiral
jacket material PVC
bend radius 20.4 mm
color black
cable length 2000 mm
operating temperature 80 °C
voltage rating 48 V
current rating 7.0 A
UL style 1185
connector 1 50-00010
connector 2 stripped and tinned
wire part # 30-00004
HTS code 8544.42.9090
unit weight 59.50g
Prop65 Vinyl Chloride
