Price:
Sale price$0.00

Description

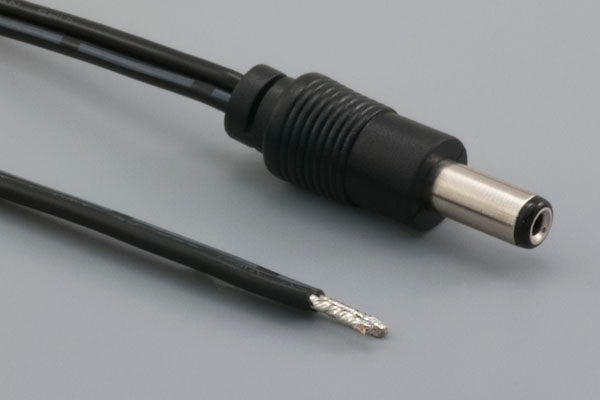

Cable, 1830 mm, 5.5x2.1x12 mm, 50-00126 dc plug to stripped tinned, 18 AWG, 30-00007 wire

connector type dc
connector style plug → tinned
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.1 mm
connector outer Ø 5.5 mm
wire outer Ø 4.4
AWG 18
cable style flat
shield unshielded
jacket material PVC
bend radius 13.2 mm
color black
cable length 1830 mm
operating temperature 80 °C
voltage rating 36 V
current rating 3.0 A
UL style 2468
connector 1 50-00126
connector 2 stripped and tinned
wire part # 30-00007
HTS code 8544.42.9090
unit weight 48.40g
Prop65 Vinyl Chloride
