Description

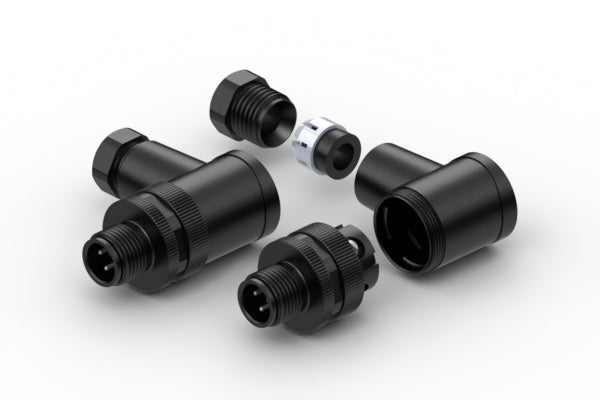

Connector, M12 D-code plug, 4 pin, 12xL39 mm, 90° gold plated, assembly style, screw terminal, IP67, plastic thread
| connector type | M series |
| connector style | plug |
| connector orientation | 90° |
| M type | M12 |
| # of connector contacts | 4 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | D |
| connector length | 39.0 mm |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | mm |
| operating temperature | -40~120 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 1000 cycles |
| features | assembly type |
| HTS code | 8536.69.4020 |
| Prop65 | Nickel |
