Description

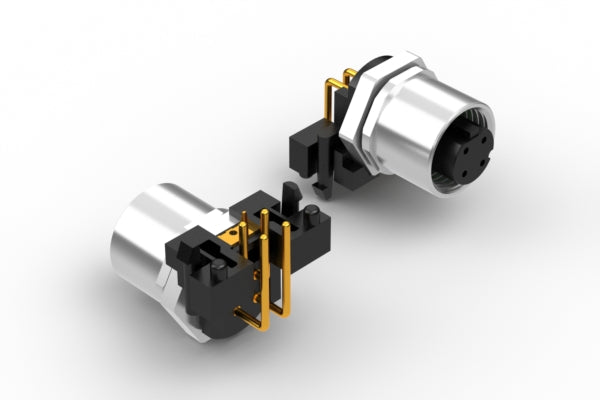

Connector, M12 D-code socket, 4 pin, 12xL25 mm, panel mount, thru hole, 90°, board lock, gold plated, IP67
| connector style | jack |
| connector orientation | 90° |
| # of connector contacts | 4 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | D |
| connector length | 25.0 mm |
| mounting style | thru hole |
| connector color | black |
| operating temperature | -40~105 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| features | waterproof |
| HTS code | 8536.69.4020 |
| unit weight | 13.53g |
| Prop65 | Nickel |
