Description

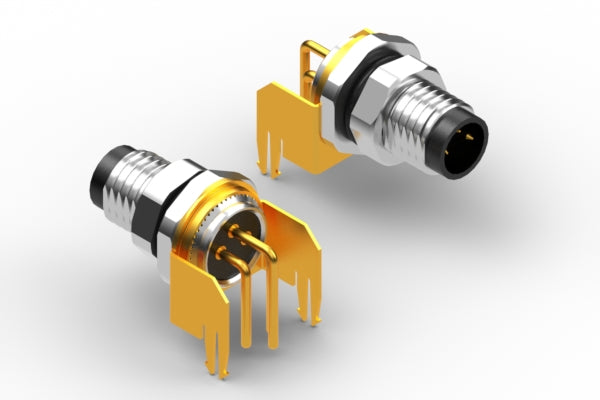

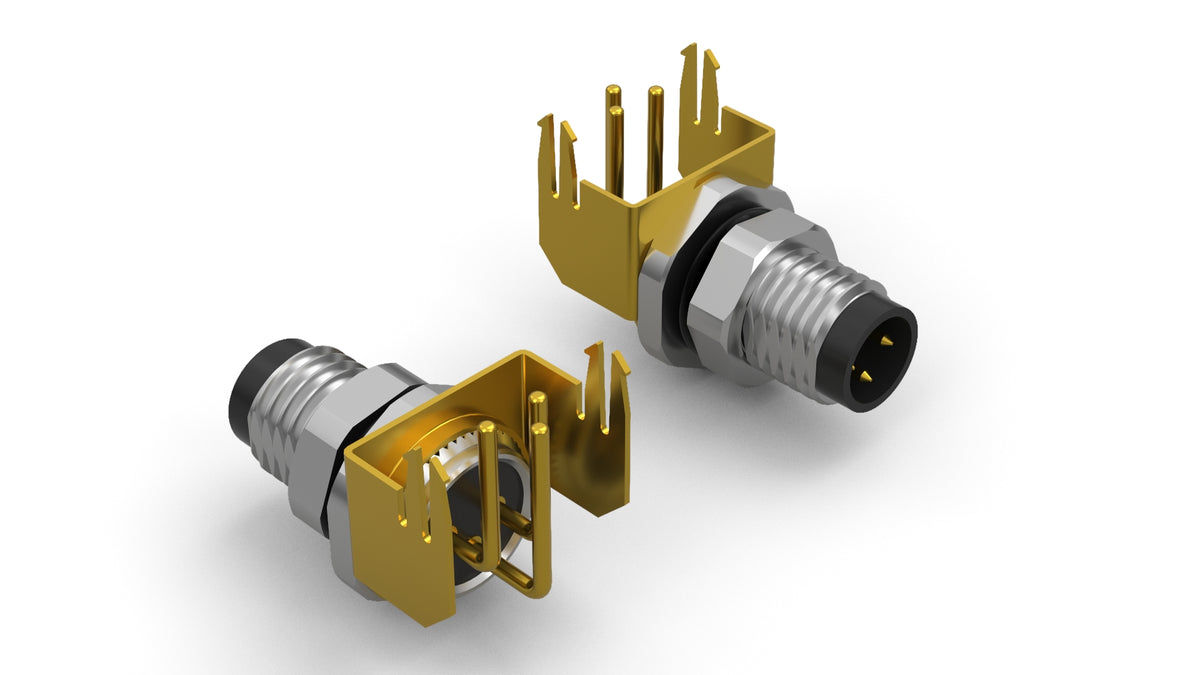

Connector, M8 A-code plug, 3 pin, 8xL22.6 mm, panel mount, thru hole, 90°, board lock, gold plated, IP67
| connector type | M series |
| connector style | plug |
| connector orientation | 90° |
| M type | M8 |
| # of connector contacts | 3 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 17.0 mm |
| mounting style | panel mount |
| connector color | black |
| operating temperature | -40~105 °C |
| voltage rating | 60 V |
| current rating | 3.0 A |
| cycle rating | 1000 |
| features | waterproof |
| HTS code | 8536.69.4020 |
| unit weight | 9.16g |
| Prop65 | Nickel |
