Description

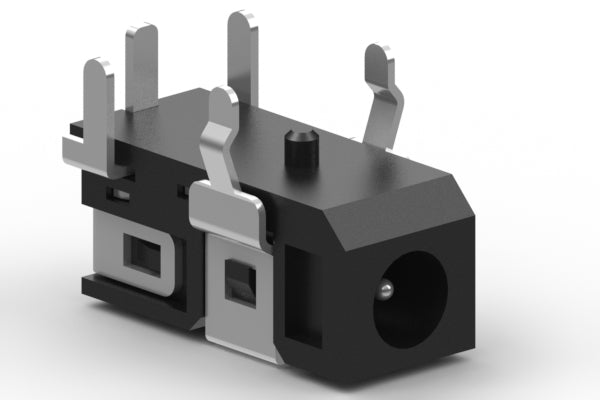

Connector, dc jack, 2.35x0.7xL12 mm, thru hole, 90°, board lock, silver plated
| connector type | dc |
| connector style | jack |
| # of connector contacts | 2 |
| connector center pin Ø | 0.7 mm |
| connector outer Ø | 2.35 mm |
| connector plating | silver |
| connector length | 11.8 mm |
| mounting style | thru hole, board lock |
| connector color | black |
| operating temperature | -25~85 °C |
| voltage rating | 48 V |
| current rating | 5.0 A |
| cycle rating | 5000 |
| features | PCB |
| HTS code | 8536.69.4040 |
| Prop65 | Nickel |
