Description

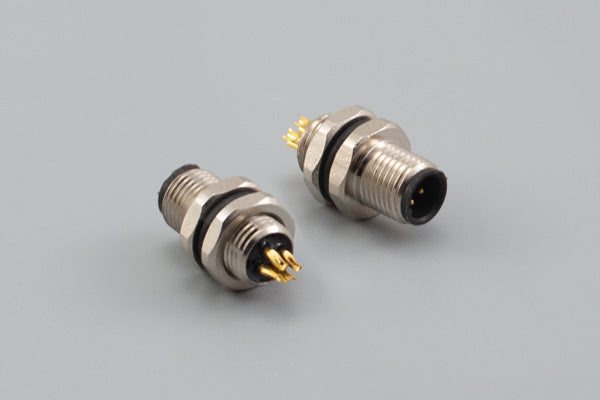

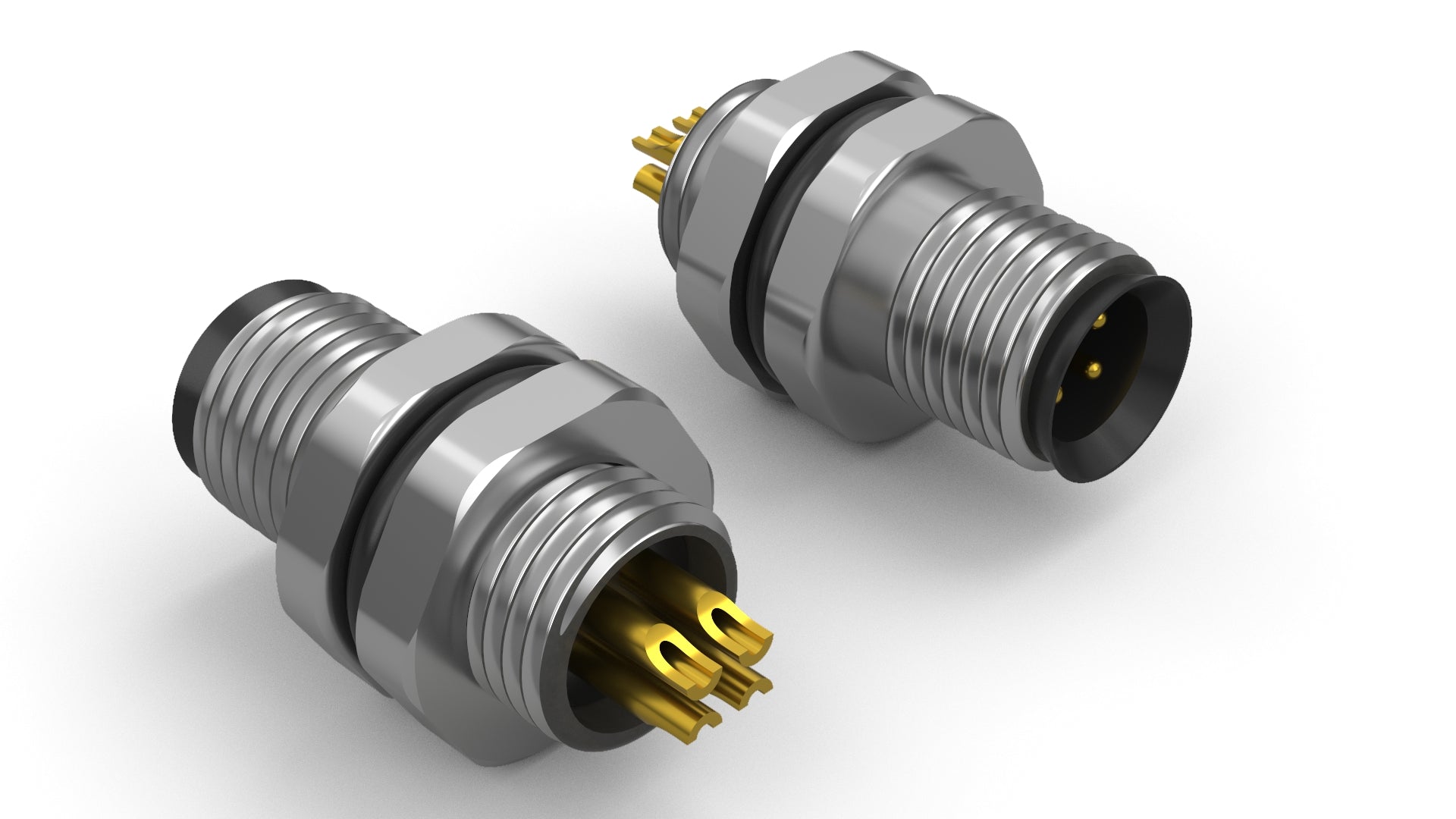

Connector, M5 A-code plug, 4 pin, 5xL13 mm, panel mount, solder cup, gold plated, IP67
| connector type | M series |
| connector style | plug |
| M type | M5 |
| # of connector contacts | 4 |
| connector center pin Ø | 0.5 mm |
| connector outer Ø | 5.0 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 13.0 mm |
| mounting style | panel mount |
| connector color | black |
| operating temperature | -40~85 °C |
| voltage rating | 60 V |
| current rating | 1.0 A |
| cycle rating | 500 |
| features | waterproof |
| HTS code | 8536.69.4030 |
| unit weight | 4.62g |
| Prop65 | Nickel |
