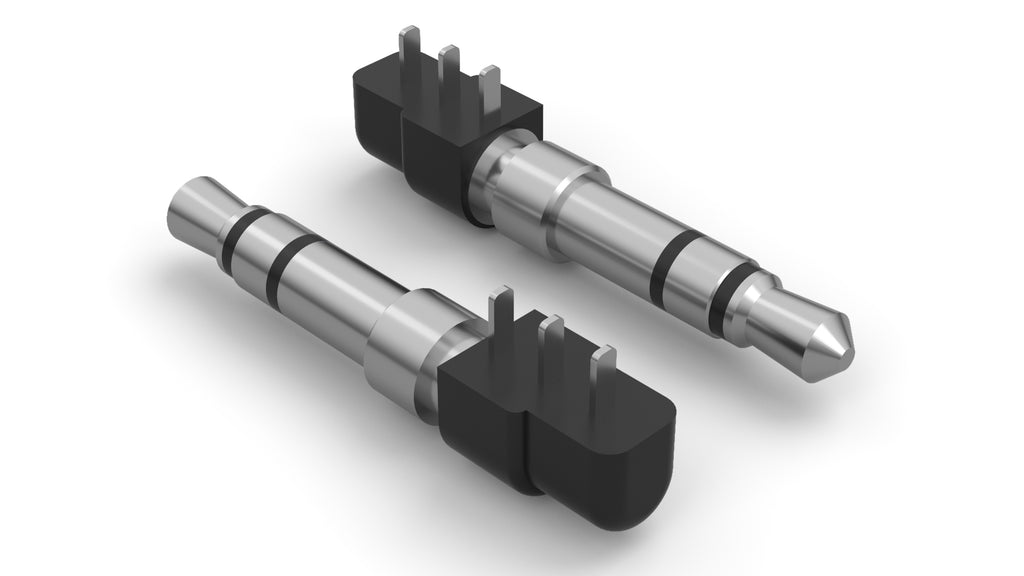

Connector, audio plug, 3C, 3.5xL26.6 mm, thru hole, 90°, nickel plated
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | audio-video |
| connector style | plug |
| # of connector contacts | 3 |
| connector outer Ø | 3.5 mm |
| connector plating | nickel |
| connector length | 26.6 mm |
| mounting style | thru hole |
| connector color | black |
| shield | unshielded |
| operating temperature | -25~70 °C |
| cycle rating | 5000 |
| features | PCB |
| HTS code | 8536.69.4040 |
| unit weight | 1.68g |
| Prop65 | Nickel |
