Description

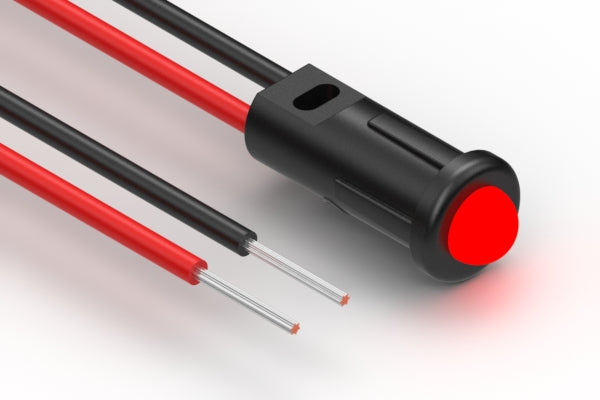

Cable, 150 mm, red LED 57-00001 to 5 mm tinned, panel mount, 26 AWG UL11028
| # of conductors | 2 |
| # of connector contacts | 2 |
| mounting style | panel mount |
| wire outer Ø | 1 |
| AWG | 26 |
| cable style | round |
| shield | unshielded |
| bend radius | 6 mm |
| insulator color | red + black |
| cable length | 150 mm |
| operating temperature | -40~80 °C |
| voltage rating | 2 V |
| current rating | 0.02 A |
| UL style | 11028 |
| wire part # | 30-01772 |
| HTS code | 8541.41.0000 |
| unit weight | 1.70g |
