Description

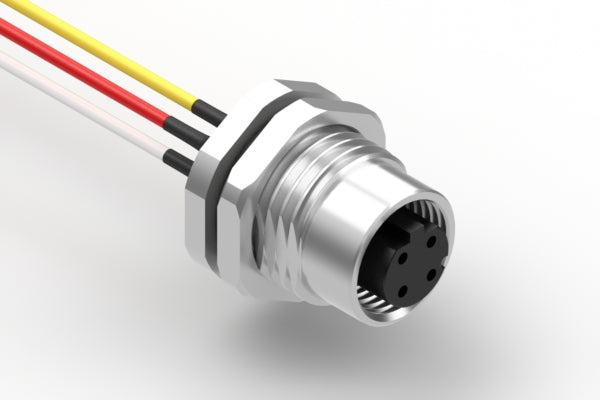

Cable, 305 mm, M12 4C socket D-code panel mount 54-00375 to blunt cut, 22 AWG, UL 11028 hook-up wire
| connector type | M series |
| connector style | jack → blunt cut |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 5 |
| # of connector contacts | 4 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | D |
| locking style | thread lock |
| mounting style | panel mount |
| connector color | black |
| wire outer Ø | 0 |
| AWG | 22 |
| shield | unshielded |
| bend radius | 0 mm |
| insulator color | red + black + white + yellow |
| cable length | 305 mm |
| operating temperature | -40~105 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| UL style | 11028 |
| connector 1 | 54-00375 |
| connector 2 | blunt cut |
| HTS code | 8544.42.9090 |
| unit weight | 28.80g |
| Prop65 | Nickel |
