Description

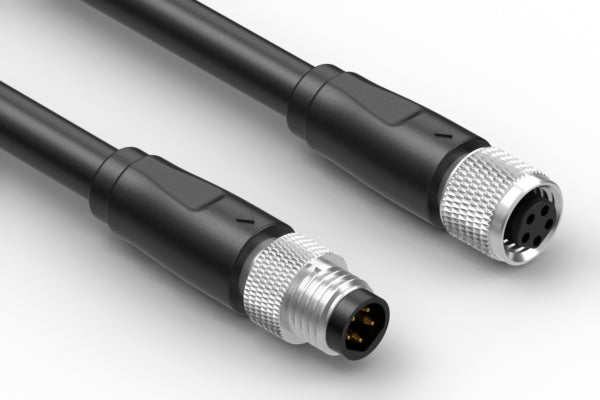

Cable, 1500 mm, 1.0 mm 5C 50-01006 M8 socket to 1.0 mm 50-01005 M8 plug, 24 AWG, 30-02976 wire
| connector style | plug → jack |
| connector orientation | 180° |
| # of conductors | 5 |
| # of connector contacts | 5 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | B |
| locking style | thread lock |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 6 |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 36 mm |
| color | black |
| insulator color | brown + white + blue + black + gray |
| cable length | 1500 mm |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 3.0 A |
| cycle rating | 1000 |
| UL style | 20387 |
| connector 1 | 50-01006 |
| connector 2 | 50-01005 |
| wire part # | 30-02976 |
| HTS code | 8544.42.9090 |
| Prop65 | Vinyl Chloride |
