Price:
Sale price$0.00

Description

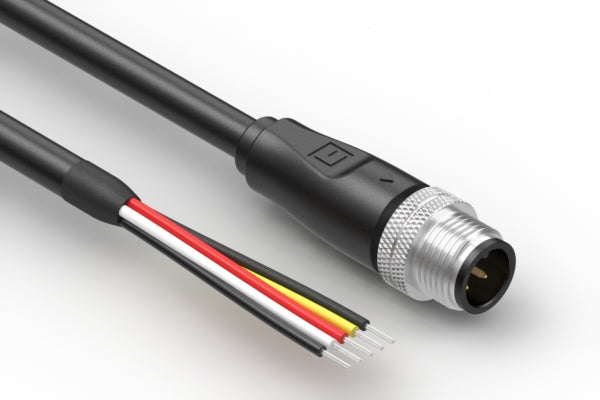

Cable, 500 mm, 1.0 mm 4C 50-00987 M12 plug to 5 mm tinned, 22 AWG, 30-01578 wire, shielded

connector type M series
connector style plug → tinned
connector orientation 180°
M type M12
# of conductors 4
# of connector contacts 4
connector center pin Ø 1.0 mm
connector plating gold
connector coding A
connector length 22.0 mm
locking style thread lock
mounting style cable mount
connector color black
wire outer Ø 6
AWG 22
cable style round
shield braid + foil
jacket material PVC
bend radius 36 mm
color black
insulator color white + black + red + yellow
cable length 500 mm
operating temperature -40~105 °C
voltage rating 250 V
current rating 4.0 A
cycle rating 500
UL style 20387
connector 1 50-00987
wire part # 30-01578
HTS code 8544.42.9090
unit weight 47.00g
Prop65 Vinyl Chloride
