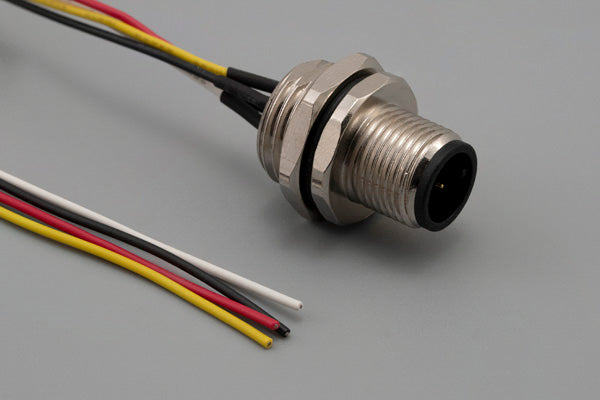

Cable, 305 mm, M12 4C plug panel mount 54-00188 to blunt cut, 24 AWG, UL 11028 hook-up wire
| connector style | plug → blunt cut |
| connector orientation | 180° |
| # of conductors | 4 |
| # of connector contacts | 4 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 24 mm |
| mounting style | panel mount |
| connector color | black |
| AWG | 24 |
| cable style | round |
| shield | unshielded |
| insulator color | red + black + white + yellow |
| cable length | 305 mm |
| operating temperature | -40~105 °C |
| voltage rating | 250 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| UL style | 11028 |
| features | panel mount |
| connector 1 | 54-00188 |
| connector 2 | blunt cut |
| HTS code | 8544.42.9090 |
| unit weight | 22.80g |
| Prop65 | Nickel |
