Description

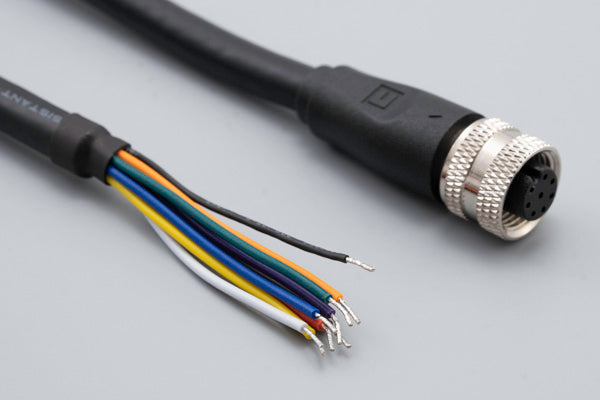

Cable, 5000 mm, 0.8 mm 8C 50-00983 M12 socket to 5 mm tinned, 24 AWG, 30-01611 wire, shielded
| connector type | M series |
| connector style | jack → tinned |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 8 |
| # of connector contacts | 8 |
| connector center pin Ø | 0.8 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 22 mm |
| mounting style | cable mount |
| connector color | black |
| wire outer Ø | 6.8 |
| AWG | 24 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 40.8 mm |
| color | black |
| insulator color | red + black + white + yellow + blue + green + orange + purple |
| cable length | 5000 mm |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 2.0 A |
| cycle rating | 500 |
| UL style | 20387 |
| connector 1 | 50-00983 |
| connector 2 | stripped and tinned |
| wire part # | 30-01611 |
| HTS code | 8544.42.9090 |
| unit weight | 415.00g |
| Prop65 | Vinyl Chloride |
