Description

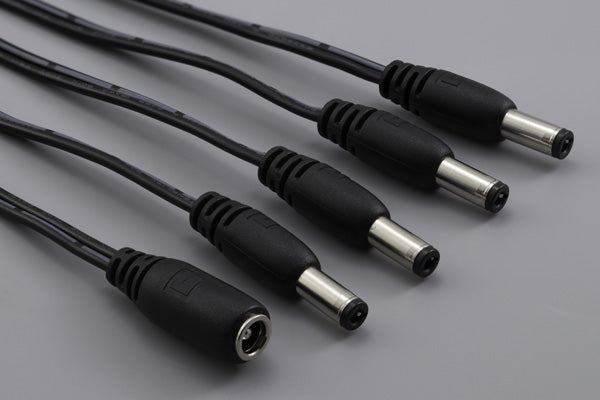

Cable, 915 mm, 5.5x2.5 mm 50-00027 dc jack to y-split to 4x 5.5x2.5x12 mm 50-00026 dc plug, 18 AWG

connector type dc
connector style plug → jack
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.5 mm
connector outer Ø 5.5 mm
wire outer Ø 4.4
AWG 18
cable style flat
jacket material PVC
bend radius 13.2 mm
color black
cable length 915 mm
operating temperature 80 °C
UL style 2468
connector 1 50-00027
connector 2 50-00026
wire part # 30-00007
HTS code 8544.42.9090
Prop65 Vinyl Chloride
