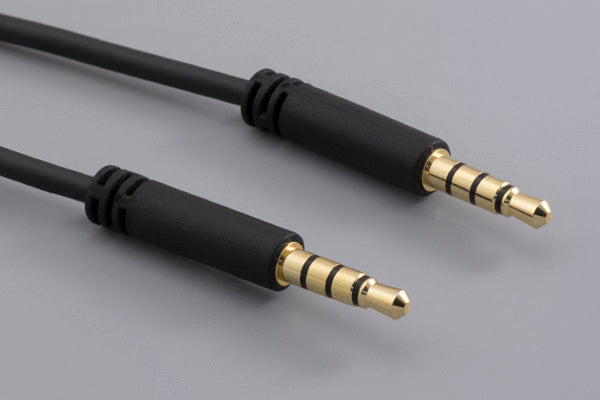

Cable, 1830 mm, 3.5 mm 4C 50-00501 slim audio plug to same, 28 AWG, 30-00495, shielded, WBL
| connector type | audio-video |
| connector style | plug → plug |
| connector orientation | 180° |
| # of conductors | 3 |
| # of connector contacts | 4 |
| connector outer Ø | 3.5 mm |
| wire outer Ø | 2.8 mm |
| AWG | 28 |
| cable style | round |
| shield | spiral |
| jacket material | TPU |
| bend radius | 11.2 mm |
| color | black |
| insulator color | black + white + red |
| cable length | 1830 mm |
| operating temperature | 70 °C |
| connector 1 | 50-00501 |
| connector 2 | 50-00501 |
| wire part # | 30-00495 |
| HTS code | 8544.42.9090 |
| unit weight | 25.75g |
| Prop65 | Nickel |
