Price:
Sale price$0.00

Description

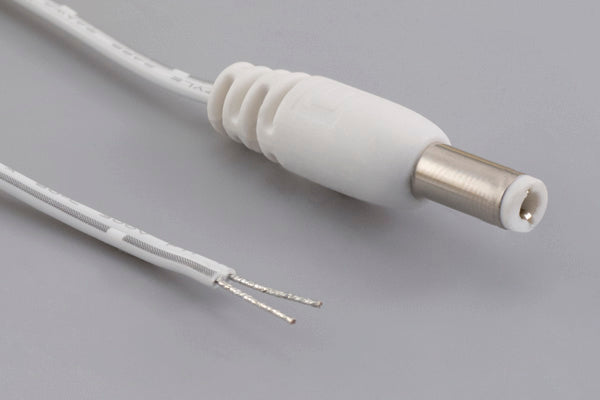

Cable, 1830 mm, 5.5x2.5x12 mm 50-00314 dc plug to stripped tinned, 24 AWG, 30-00405 wire, white

connector type dc
connector style plug → tinned
connector orientation 180°
# of conductors 2
# of connector contacts 2
connector center pin Ø 2.5 mm
connector outer Ø 5.5 mm
wire outer Ø 3
AWG 24
cable style flat
shield unshielded
jacket material PVC
bend radius 9 mm
color white
cable length 1830 mm
operating temperature 80 °C
voltage rating 48 V
current rating 4.5 A
UL style 2468
connector 1 50-00314
connector 2 stripped and tinned
wire part # 30-00405
HTS code 8544.42.9090
unit weight 19.90g
Prop65 Vinyl Chloride
