2651

51 products

Showing 1 - 24 of 51 products

Showing 1 - 24 of 51 products
View
10-02316
10-02316
Description

Cable, 1830 mm, 5.5x2.5x12 mm 50-00542 dc plug to 10 mm tinned, 18 AWG, 30-00795 R-B wire, 105° C

10-02317
10-02317
Description

Cable, 1830 mm, 5.5x2.1x12 mm 50-00540 dc plug to 10 mm tinned, 24 AWG, 30-00804 R-B wire, 105° C

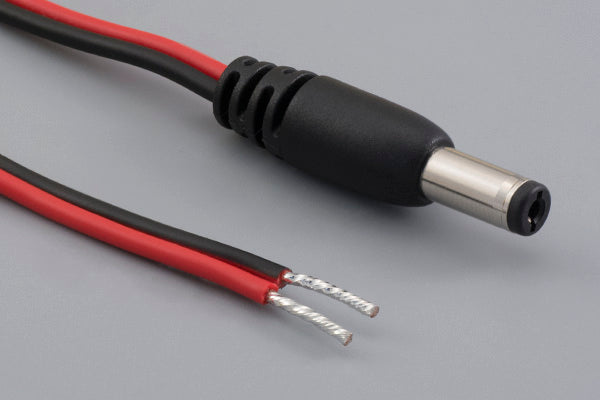

10-02318
10-02318
Description

Cable, 1830 mm, 5.5x2.1x12 mm 50-00540 dc plug to 10 mm tinned, 18 AWG, 30-00795 R-B wire, 105° C

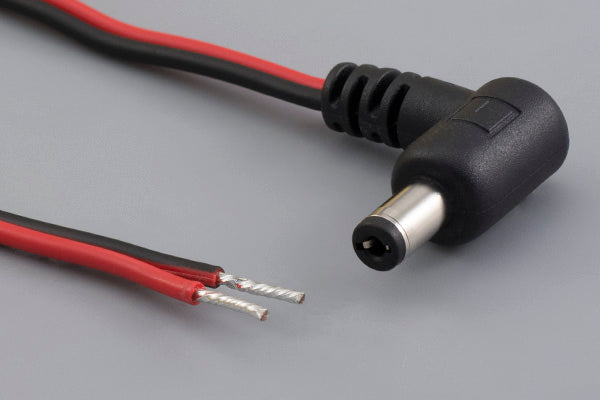

10-02319
10-02319
Description

Cable, 1830 mm, 5.5x2.1x10 mm 90° 50-00540 dc plug to 10 mm tinned, 18 AWG, 30-00795 R-B wire, 105°C

10-02320
10-02320
Description

Cable, 1830 mm, 5.5x2.5x10 mm 90° 50-00542 dc plug to 10 mm tinned, 18 AWG, 30-00795 R-B wire, 105°C

10-02321
10-02321
Description

Cable, 1830 mm, 5.5x2.5x12 mm 50-00542 dc plug to 10 mm tinned, 24 AWG, 30-00804 R-B wire, 105° C

10-02322
10-02322
Description

Cable, 1830 mm, 5.5x2.1x12 mm 50-00540 dc plug to 5.5x2.1 50-00541 jack, 18 AWG, 30-00795 R-B, 105°C

10-02323
10-02323
Description

Cable, 1830 mm, 5.5x2.5x12 mm 50-00542 dc plug to 5.5x2.5 50-00543 jack, 18 AWG, 30-00795 R-B, 105°C

10-02324
10-02324
Description

Cable, 1830 mm, 5.5x2.5 mm 50-00543 dc jack to 10 mm tinned, 18 AWG, 30-00795 R-B wire, 105° C

10-02325
10-02325
Description

Cable, 1830 mm, 5.5x2.1 mm 50-00541 dc jack to 10 mm tinned, 18 AWG, 30-00795 R-B wire, 105° C

10-02402
10-02402
Description

Cable, 915 mm, 50-00550 SAE to 5.5x2.1 mm 50-00541 dc jack, 16 AWG, UL2651, 30-00792, R-B wire, caps

10-02403
10-02403
Description

Cable, 915 mm, 50-00550 SAE to 5.5x2.5 mm 50-00543 dc jack, 16 AWG, UL2651, 30-00792, R-B wire, caps

10-02406
10-02406
Description

Cable, 915 mm, 50-00550 SAE to blunt cut, 16 AWG, UL2651, 30-00792, R-B wire, red to SAE pin

10-02407
10-02407
Description

Cable, 915 mm, 50-00550 SAE to blunt cut, 16 AWG, UL2651, 30-00792, R-B wire, black to SAE pin

10-02408
10-02408
Description

Cable, 1830 mm, 50-00550 SAE to blunt cut, 16 AWG, UL2651, 30-00792, R-B wire, red to SAE pin

10-02409
10-02409
Description

Cable, 1830 mm, 50-00550 SAE to blunt cut, 16 AWG, UL2651, 30-00792, R-B wire, black to SAE pin

10-02410
10-02410
Description

Cable, 305 mm, 50-00550 SAE to Y split to two 50-00550 SAE, 16 AWG, UL2651, 30-00792, R-B wire, caps

10-02411
10-02411
Description

Cable, 305 mm, 50-00550 SAE to W split to three 50-00550 SAE, 16 AWG, UL2651, 30-00792, caps

10-02412
10-02412
Description

Cable, 1830 mm, 50-00550 SAE to 50-00550 SAE, 16 AWG, UL2651, 30-00792, R-B wire, caps

10-02413
10-02413
Description

Cable, 3660 mm, 50-00550 SAE to 50-00550 SAE, 16 AWG, UL2651, 30-00792, R-B wire, caps

10-02414
10-02414
Description

Cable, 305 mm, 50-00550 SAE to alligator clips, 16 AWG, UL2651, 30-00792, R-B wire, cap

10-03671
10-03671
Description

Cable, 305 mm, 5.5x2.5 mm 50-00617 dc panel mount jack to stripped and tinned, 18 AWG, 30-00795

10-03672
10-03672
Description

Cable, 305 mm, 5.5x2.1 mm 50-00616 dc panel mount jack to stripped and tinned, 18 AWG, 30-00795

10-03866
10-03866
Description

Cable, 305 mm, 3.5x1.35 mm 50-00637 dc panel mount jack to stripped and tinned, 24 AWG, 30-00804
